Manufacturing Process of Brown Fused Alumina

Introduction

Why does Brown Fused Alumina perform so well in grinding and blasting?The answer lies in how it is made.This article explores the manufacturing process of Brown Fused Alumina.You will learn how raw materials turn into strong abrasive grains.



Raw Material Preparation for Brown Fused Alumina Production

Selection of High-Quality Bauxite as the Main Raw Material

The production of Brown Fused Alumina begins with the careful selection of bauxite, which acts as the primary aluminum oxide source. Producers generally prefer calcined bauxite with an Al₂O₃ content of 85% or higher, because higher alumina levels help create stronger corundum crystals during the smelting stage. When the raw ore quality remains stable, the resulting Brown Fused Alumina grains tend to show excellent hardness, toughness, and resistance to wear in abrasive applications.

Some of the key aspects considered during bauxite selection include:

● Alumina concentration, which determines how much aluminum oxide can transform into corundum crystals during smelting.

● Impurity levels, including silica, iron oxide, and titanium compounds, because excessive impurities may weaken the abrasive structure.

● Uniform mineral structure, which helps the ore melt evenly in the electric arc furnace and improves production stability.

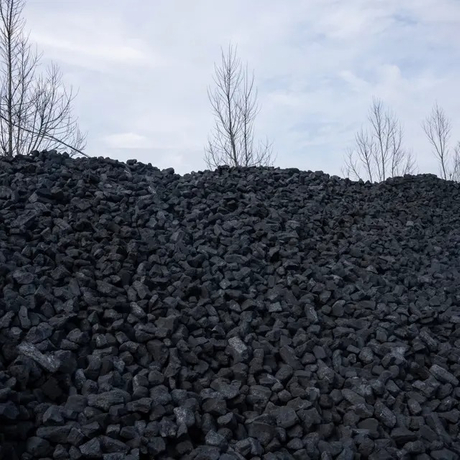

Role of Carbon Materials in the Brown Fused Alumina Process

Carbon materials are an essential component of the Brown Fused Alumina manufacturing process. During electric arc furnace smelting, they act as reducing agents and react with impurity oxides present in the raw mixture. When the furnace temperature rises above approximately 2000 °C, carbon helps remove unwanted oxides and improves the purity of molten alumina.

In most production systems, manufacturers rely on carbon sources such as anthracite or petroleum coke. These materials provide stable carbon content and support the chemical balance inside the furnace. When carbon ratios are carefully controlled, the molten material becomes cleaner and more suitable for forming strong aluminum oxide crystals.

Their role in the smelting stage generally includes:

● Reducing impurity oxides such as SiO₂ or TiO₂ during high-temperature reactions.

● Assisting in slag formation, which helps separate impurities from molten alumina.

● Maintaining a balanced chemical environment inside the furnace during fusion.

If the carbon ratio becomes too low, impurity removal may remain incomplete. If it becomes excessive, furnace reactions may become unstable. For that reason, producers carefully calculate the carbon proportion before the furnace charging stage.

Addition of Iron Filings for Impurity Separation

Iron filings are sometimes introduced during the preparation stage to improve impurity separation during smelting. Inside the electric arc furnace, iron interacts with certain oxide compounds and promotes the formation of slag layers. These slag layers collect unwanted elements and separate them from the molten alumina mass.

This step contributes to a cleaner molten phase before crystallization occurs. As impurities are captured by the slag, the remaining molten alumina becomes more suitable for forming dense corundum crystals. These crystals eventually solidify into the block structures that are later crushed into Brown Fused Alumina abrasive grains.

Producers value this step because it helps improve product stability in several ways:

● It assists the removal of unwanted oxides during the smelting reaction.

● It supports the formation of cleaner molten alumina before cooling.

● It reduces metallic contamination in the final abrasive particles.

Drying, Screening, and Precise Mixing of Raw Materials

Before entering the furnace, the prepared materials must undergo drying, screening, and controlled mixing. Moisture removal is an important first step because water can cause unstable reactions under high-temperature conditions. Dry materials improve furnace safety and ensure consistent melting behavior during smelting.

Once dried, the materials pass through screening systems that remove oversized particles and unwanted debris. This stage helps ensure a more uniform particle size distribution, which improves heat transfer and promotes stable reactions inside the furnace.

After screening, producers measure each ingredient carefully according to the production formula. Bauxite, carbon materials, and iron additives are weighed and mixed in precise proportions. Uniform mixing allows the furnace to receive a consistent feed mixture and prevents chemical imbalance during smelting.

Preparation Stage	Main Function	Impact on Brown Fused Alumina Production
Drying	Removes moisture from raw materials	Improves furnace stability and safety
Screening	Eliminates oversized particles and impurities	Ensures uniform heating during smelting
Proportioning	Controls raw material ratios	Maintains chemical balance in the furnace
Mixing	Creates a homogeneous feed mixture	Supports consistent Brown Fused Alumina quality



High-Temperature Smelting in the Electric Arc Furnace

Electric Arc Furnace Setup for Brown Fused Alumina Production

The electric arc furnace forms the core of the Brown Fused Alumina manufacturing process. In industrial plants, this furnace converts prepared raw materials into molten alumina under extremely high temperatures. Producers load the prepared mixture of bauxite, carbon materials, and iron additives into the furnace chamber. Once the furnace starts, graphite electrodes generate powerful electric arcs. These arcs quickly raise the temperature above 2000 °C, allowing the materials to melt and react.

Important elements of the furnace system include:

● Graphite electrodes

They conduct electricity and generate the arc that produces extreme heat. Their position must remain stable to keep the reaction zone consistent.

● Furnace lining and refractory walls

These components withstand the intense temperature environment. They protect the furnace structure and help retain heat during long smelting cycles.

● Charging and monitoring systems

These systems regulate the feeding of raw materials and help operators maintain stable operating conditions throughout the Brown Fused Alumina fusion stage.

Furnace Component	Function in Smelting	Impact on Brown Fused Alumina
Graphite Electrodes	Generate electric arc heat	Enables high-temperature fusion
Furnace Chamber	Contains molten materials	Maintains stable reaction environment
Refractory Lining	Protects furnace walls	Prevents heat loss during smelting
Control Systems	Monitor current and temperature	Stabilizes crystal formation conditions

Fusion of Bauxite at Temperatures Above 2000°C

Once the furnace reaches operating temperature, the fusion stage begins. The bauxite gradually melts and transforms into a molten alumina phase. At the same time, carbon materials react with impurity oxides present in the raw mixture. These reactions help separate unwanted compounds and improve the purity of the molten material.

Inside the furnace, several reactions occur simultaneously. The high heat breaks down the mineral structure of bauxite. Aluminum oxide becomes the dominant molten component, while other oxides react and move into the slag layer. This slag layer floats above the molten alumina and can later be removed.

During the smelting stage, several factors influence the quality of Brown Fused Alumina:

● Temperature stability

Consistent high heat allows the raw materials to melt evenly and prevents incomplete reactions.

● Reaction balance between carbon and oxides

Carbon reduces impurity oxides and helps remove unwanted elements from the molten mixture.

● Separation of slag and molten alumina

Proper slag formation improves the chemical purity of the final abrasive material.

Because the furnace operates continuously for long cycles, engineers monitor these reactions carefully. Stable conditions lead to cleaner molten alumina and stronger crystal formation in later stages.

Formation of Molten Brown Fused Alumina

After the fusion reactions stabilize, the molten material gradually develops into molten Brown Fused Alumina, also known as molten corundum. At this stage, aluminum oxide becomes the dominant component in the liquid phase. The molten mass contains a high concentration of Al₂O₃ and begins to form the base structure of future abrasive crystals.

Temperature control becomes extremely important here. If the furnace temperature rises too quickly or drops suddenly, the molten material may develop uneven crystal structures. Stable thermal conditions allow the aluminum oxide molecules to organize into strong crystalline networks. These networks eventually solidify into the dense corundum blocks used to produce Brown Fused Alumina abrasives.

The transformation from raw material mixture to molten corundum typically involves several physical changes:

● Mineral breakdown

The original bauxite structure decomposes under extreme heat.

● Molten alumina formation

Aluminum oxide becomes the primary liquid phase.

● Crystal nucleus development

Early crystal structures begin forming inside the molten mass.

When the molten Brown Fused Alumina reaches the desired chemical composition and temperature balance, it becomes ready for the controlled cooling stage. The molten material will later solidify into large corundum blocks, which are processed into abrasive grains through crushing and classification.



Cooling and Crystallization of Brown Fused Alumina Blocks

Controlled Cooling After Furnace Smelting

Once the smelting stage finishes, the molten material must cool gradually. This stage plays a critical role in forming high-quality Brown Fused Alumina. Instead of rapid cooling, producers allow the molten mass to remain inside the furnace chamber. The temperature decreases slowly over time. Controlled cooling helps avoid structural cracks and preserves crystal strength.

In many production systems, the cooling stage lasts 24–48 hours. During this time the molten alumina begins to solidify layer by layer. Slow heat loss allows atoms to arrange more evenly. It reduces internal stress and helps create stronger abrasive grains later.

Several factors influence cooling quality:

● Temperature decline speed

If it cools too quickly, thermal stress may appear. Cracks may form inside the corundum blocks. Gradual cooling prevents structural damage.

● Furnace insulation performance

Good insulation allows heat to dissipate slowly. It keeps the cooling process stable and predictable.

● Smelting batch size

Larger molten masses cool more slowly. This often improves crystal growth and abrasive strength.

Cooling Parameter	Typical Range	Effect on Brown Fused Alumina
Cooling Duration	24–48 hours	Allows stable crystal formation
Temperature Reduction	Gradual decline	Prevents internal thermal stress
Furnace Insulation	High heat retention	Supports uniform solidification

Formation of Dense α-Alumina Crystal Structure

As cooling continues, the molten material begins transforming into α-alumina crystals, commonly called corundum. This stage determines many key properties of Brown Fused Alumina, including hardness, toughness, and resistance to wear. When temperature decreases slowly, aluminum oxide molecules arrange into dense crystalline networks.

These networks grow into large interlocking crystals. The stronger the crystal structure becomes, the better the abrasive performs in grinding and blasting operations. Crystal development depends heavily on temperature control and cooling time.

Important characteristics formed during crystallization include:

● Dense crystal packing

Slow cooling allows atoms to align in stable positions. It strengthens the internal structure of Brown Fused Alumina grains.

● Angular crystal growth

The resulting crystal shapes become irregular and sharp. This shape improves cutting performance in abrasive applications.

● Balanced hardness and toughness

Proper crystal formation produces grains strong enough for grinding yet durable enough to resist fracture.

During this stage the molten alumina gradually transforms into large solid blocks. These blocks represent the raw crystalline form of Brown Fused Alumina before mechanical processing.

Removal of Solidified Brown Fused Alumina Blocks

After the cooling process finishes, the furnace contains large corundum blocks formed from solidified alumina. Workers carefully remove these blocks from the furnace chamber. Handling requires specialized equipment because the material remains extremely dense and heavy.

Once removed, the blocks undergo inspection. Operators examine crystal quality, color consistency, and structural integrity. Large cracks or abnormal crystal formations may indicate uneven cooling during the previous stage.

The inspection process usually focuses on several points:

● Crystal uniformity

Even crystal distribution suggests stable cooling conditions.

● Material density

Dense blocks indicate strong internal structure suitable for abrasive production.

● Color consistency

Typical Brown Fused Alumina blocks show a brown or dark amber tone due to controlled impurity levels.

After inspection, the blocks are prepared for the next stage of production. They will later be crushed, purified, and graded into abrasive particles suitable for grinding tools, blasting media, and refractory materials.



Crushing, Purification, and Particle Classification

Multi-Stage Crushing of Brown Fused Alumina Blocks

After cooling, large corundum blocks must be broken into usable particles. This stage transforms solid Brown Fused Alumina into abrasive grains suitable for industrial use. Producers usually apply multi-stage crushing so particle size can be reduced gradually while maintaining the angular grain shape needed for grinding and blasting.

The first stage normally uses jaw crushers. These machines break large blocks into smaller fragments that can move through later equipment. Secondary crushing then refines the material further using hammer crushers or grinding mills. These machines help produce the sharp particle edges that improve abrasive efficiency.

Typical goals during crushing include:

● Controlled size reduction

Large corundum blocks must first be broken into smaller fragments. Gradual reduction prevents excessive dust and improves yield.

● Formation of angular grains

Brown Fused Alumina performs best when particles keep irregular edges. These edges improve cutting ability during grinding or sandblasting.

● Stable particle distribution

Multi-stage crushing helps create more uniform particles before classification.

Magnetic Separation to Remove Metal Impurities

After crushing, the material may contain small metal fragments. These fragments often come from furnace reactions or mechanical equipment. Magnetic separation removes these residues and improves the purity of Brown Fused Alumina.

Powerful magnetic separators pass over the crushed particles. They attract iron pieces and other metallic contaminants. Removing these materials helps maintain consistent abrasive performance and prevents contamination in later processing steps.

This purification stage helps achieve several improvements:

● Higher chemical purity, which is important for abrasive tools and refractory products

● More stable grinding performance, since metal particles may damage equipment

● Better suitability for high-temperature applications, where impurities could affect thermal resistance

Some factories may also perform acid washing after magnetic separation. This optional step dissolves surface residues and further improves material cleanliness.

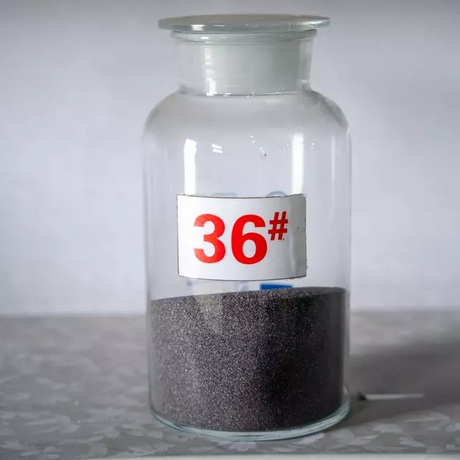

Screening and Grading into Standard Grit Sizes

After purification, producers classify the particles into different size categories. Accurate grading ensures that Brown Fused Alumina meets the requirements of specific industrial applications. Vibrating screens or air classifiers separate the particles according to diameter.

Different particle sizes serve different functions in manufacturing processes:

● Coarse particles

Used for heavy grinding or aggressive blasting operations.

● Medium grains

Suitable for surface preparation and general abrasive tools.

● Fine powders

Applied in precision polishing or delicate finishing work.

Grit Category	Typical Size Range	Main Application
Coarse Grits	F12–F80	Grinding wheels, heavy blasting
Medium Grits	F90–F220	Surface finishing, polishing
Fine Powders	240#–1000#	Precision grinding

Washing, Drying, and Final Quality Inspection

The final processing stage prepares Brown Fused Alumina for industrial use. First, the graded particles are washed with water to remove surface dust and small residues created during crushing. Cleaner grains improve bonding performance when the material is used in grinding wheels or blasting media.

After washing, the material enters drying equipment. Controlled heating removes moisture and prevents particles from sticking together during storage or transport. Proper drying also helps maintain stable physical properties in the abrasive grains.

Quality control teams then inspect the finished material. They typically examine several key indicators before packaging:

● Al₂O₃ purity level, which confirms chemical composition

● Particle size distribution, ensuring grading accuracy

● Hardness and density, verifying abrasive strength



Conclusion

The manufacturing process of Brown Fused Alumina includes raw material preparation, electric furnace smelting, cooling, crushing, and grading. Each stage shapes hardness and stability. Qinxin supplies reliable Brown Fused Alumina, offering consistent quality and strong abrasive performance for industrial applications.



FAQ

Q: What is Brown Fused Alumina used for?

A: Brown Fused Alumina is used in grinding wheels, sandblasting, and refractory materials.

Q: How is Brown Fused Alumina produced?

A: Brown Fused Alumina forms after bauxite smelts above 2000°C, then cools, crushes, and grades.

Q: Why does the Brown Fused Alumina manufacturing process matter?

A: The Brown Fused Alumina process controls hardness, purity, and particle strength.

Q: What materials are needed to produce Brown Fused Alumina?

A: Bauxite, carbon materials, and iron additives support Brown Fused Alumina smelting.

Q: Is Brown Fused Alumina cost-effective for industry?

A: Yes. Brown Fused Alumina offers durable abrasive performance and stable industrial value.
